SKU: sC30-EU-C
€76,80€63,47 Incl. VATExcl. VAT

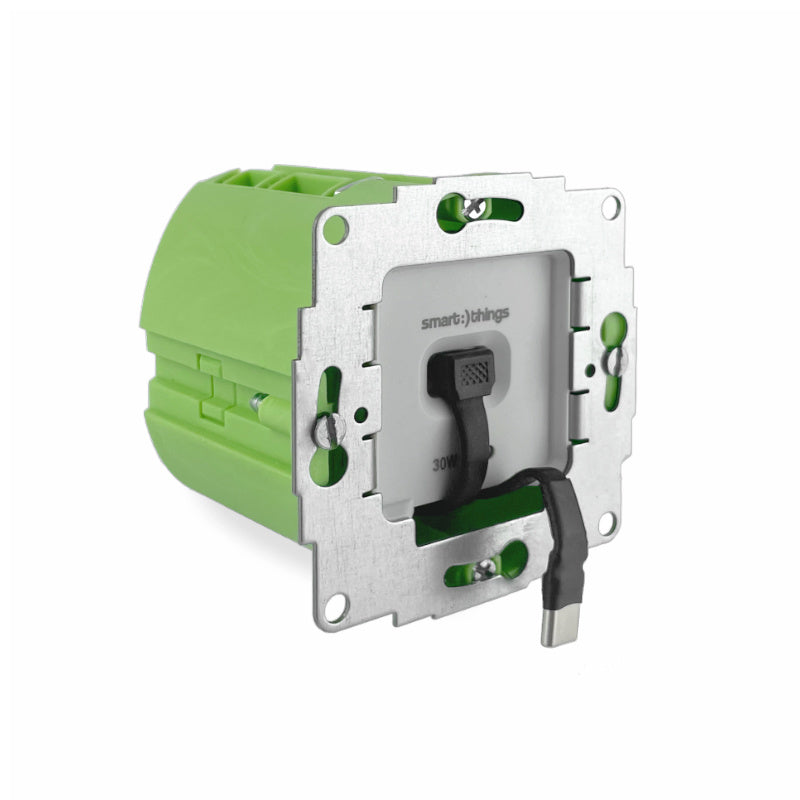

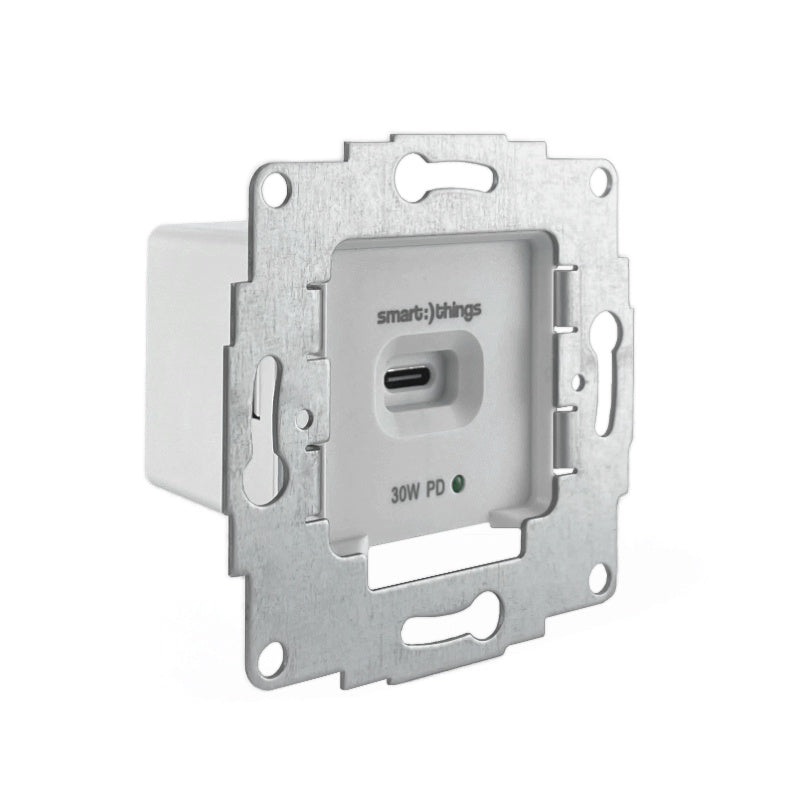

Very compact 30W built-in power supply 240V with USB-C to USB-C cable.
Input: 100-240V~, 50/60 Hz, 0.5 A
Output: 5V DC, 3.0 A; 9V DC, 3 A; 12V DC, 2.5 A; 15V DC, 2A; 20V DC, 1.3A
Total output power: max. 30W, Class II
Model: XJY-USB-A17l-3-30

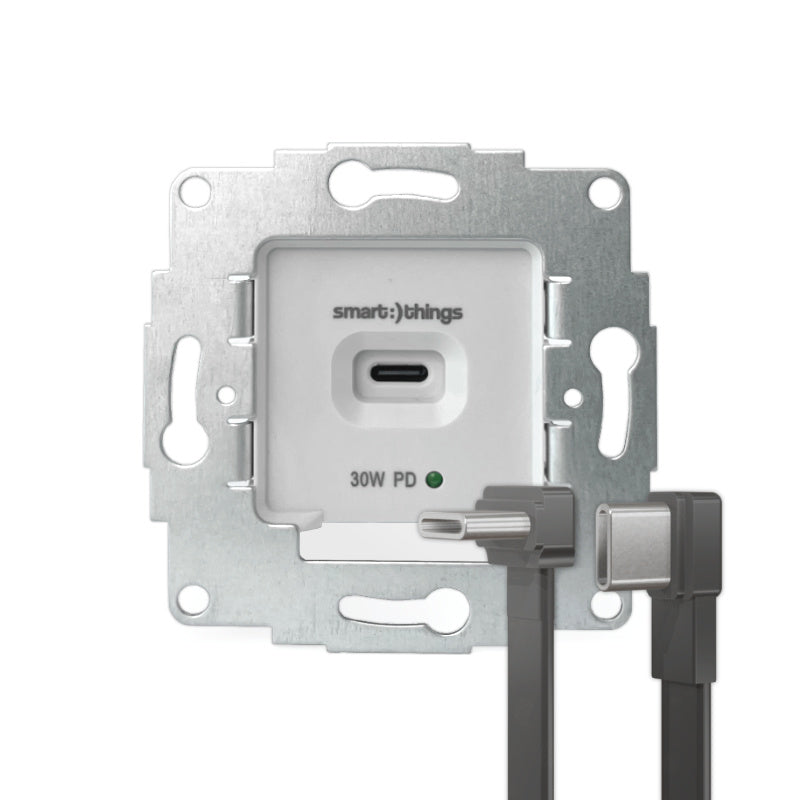

USB-C flat ribbon cable ~25cm
Compatibility:
All devices with a USB-C port that require a power socket. Max. 30W.
The device to be powered must cover the power socket.
The sCharge sC30-EU fits into all standard device or cavity wall boxes with a minimum depth of 50 mm.
Ideal for flush-mounted tablets such as Amazon Echo Hub, Apple iPad, Samsung Tab, Microsoft Surface and more.
Tests/standards:
EN 55032: 2015+A11:2020+A1:2020
EN 55035: 2017+A11:2020
EN 61000-3-3: 2013+ A1:2019+A2:2021
EN IEC 61000-3-2: 2019+A1:2021
EN 62368-1:2014+A11:2017
Scope of delivery:
sCharge 30W
USB-C flat ribbon cable, 25 cm long
Manual in EU languages
Material/environment:
Metal support frame, plastic housing.
RoHS-compliant
WEEE registration: DE 64398562
Dimensions:
71 x 71 x 47 mm (HxWxD)
