SKU: sC20-EU-C
€70,80€58,51 Incl. VATExcl. VAT

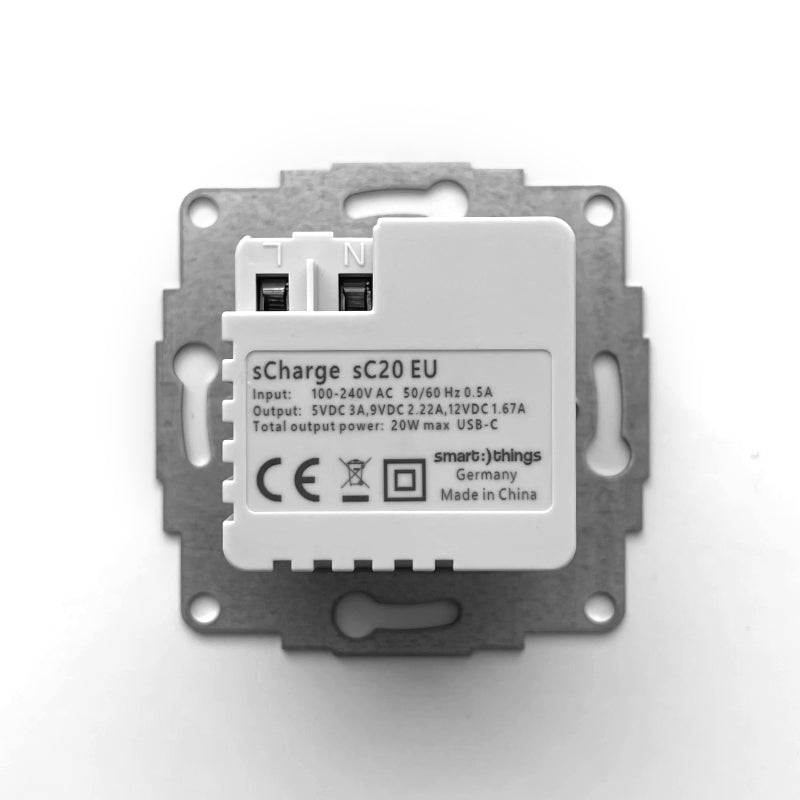

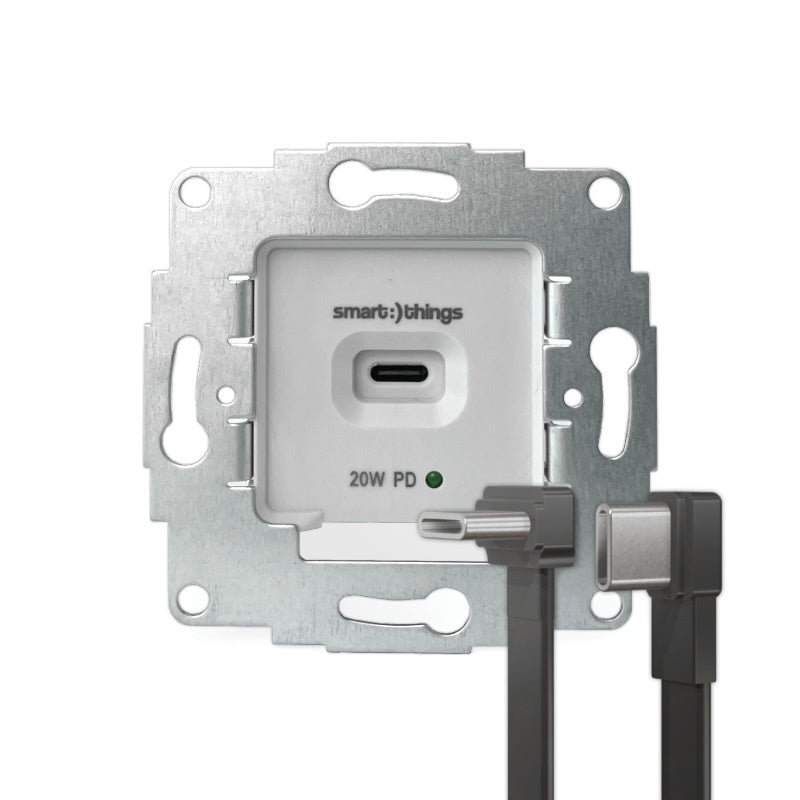

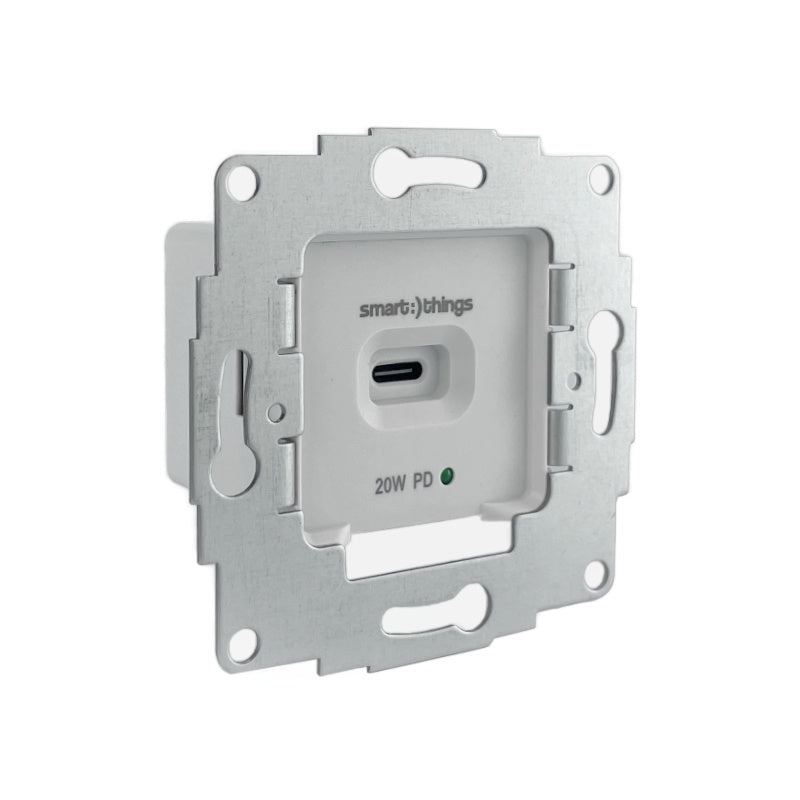

Very compact 20W built-in 240V power supply with USB-C to USB-C cable.
Input: 100–240 V~, 50/60 Hz, 0.5 A
Output: 5 V DC; 9 V DC; 12 V DC
Total output power: max. 20 W, Class II
Model: XJY-USB-A17l-3-20

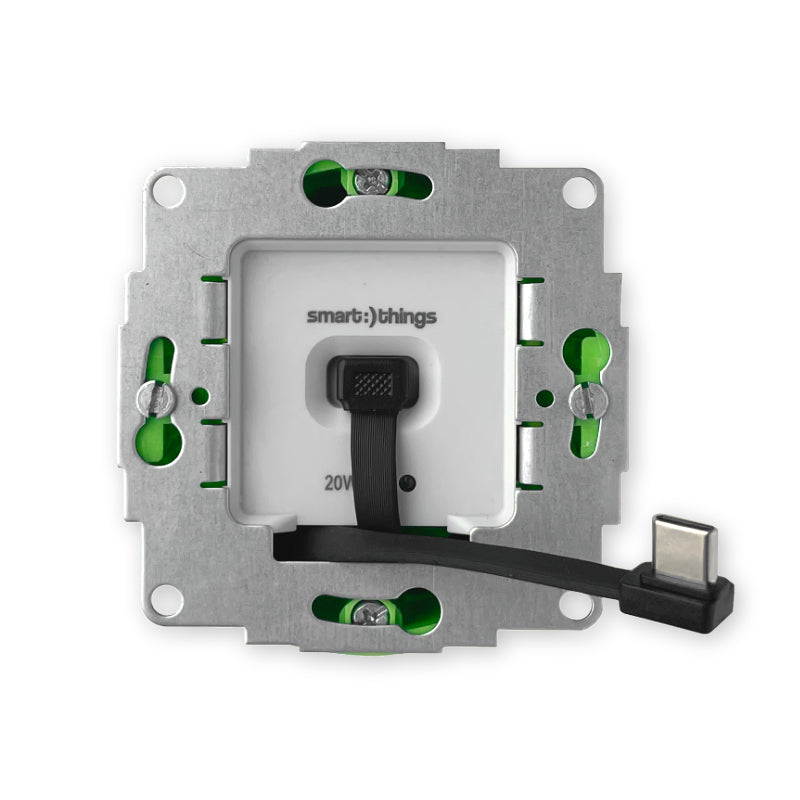

USB-C flat ribbon cable: approx. 25 cm
Compatibility:
All devices with a USB-C port that require a wall power supply.
The device to be powered must cover the outlet.

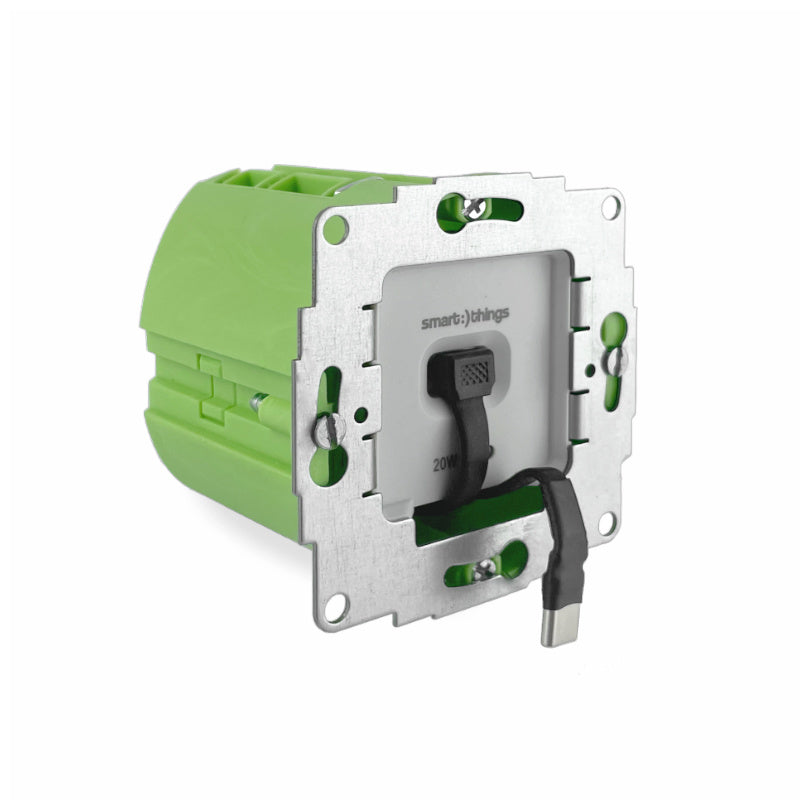

The sCharge sC20-EU fits all standard device or cavity wall boxes with a minimum depth of 43 mm.
Tests/Standards:
EN 55032: 2015+A11:2020+A1:2020
EN 55035: 2017+A11:2020
EN 61000-3-3: 2013+ A1:2019+A2:2021
EN IEC 61000-3-2: 2019+A1:2021
EN 62368-1:2014+A11:2017
Scope of delivery:
sCharge 30W
USB-C flat ribbon cable, 25 cm long
Manual in EU languages
Material/Environment:
Metal support frame, plastic housing.
RoHS compliant
WEEE registration: DE 64398562
Dimensions:
71 x 71 x 47 mm (HxWxD)
